Гаранционен срок до 25 години

Дългият гаранционен срок на сандвич панелите ви позволява да извлечете максимална полза от инсталираната на покрива система и да изпълните ангажиментите си към опазването на околната среда. Слънчевите енергийни системи са важна стъпка към устойчиво бъдеще за онези, които искат да действат с грижа за природата, като същевременно пестят енергия.

Енергийна и екологична ефективност на соларните покриви

Нашите сандвич панели, съвместими със соларни модули, осигуряват както енергийна ефективност, така и ползи за околната среда. Възможността за генериране на електроенергия от слънчевата светлина гарантира екологично чисто производство на енергия и придава естетичен завършек на вашия покрив.

Up to 25 years Warranty Periods

The long warranty period of sandwich panels allows you to get maximum benefit from the system you install on your roof and fulfill your environmental responsibility. Solar systems are an important step towards a sustainable future for those who want to act in an environmentally sensitive way while saving energy.

Solar Roofs Energy and Environmental Efficiency

Our sandwich panels compatible with solar energy panels provide both energy efficiency and environmental benefits on your roof. The ability to generate electrical energy from the sun's light ensures an environmentally friendly energy production as well as an aesthetic complement to your roof.

УМЕН ПОКРИВ. СИГУРНА СГРАДА.

Превърнете покрива си в енергиен ресурс — без пробиване.
Сандвич покривни панели, съвместими с PV Solar — сигурен, бърз и лесен монтаж.



Bring the energy of the future to your roof — without drilling.
PV Solar compatible sandwich roof panels — safe, fast and easy installation.

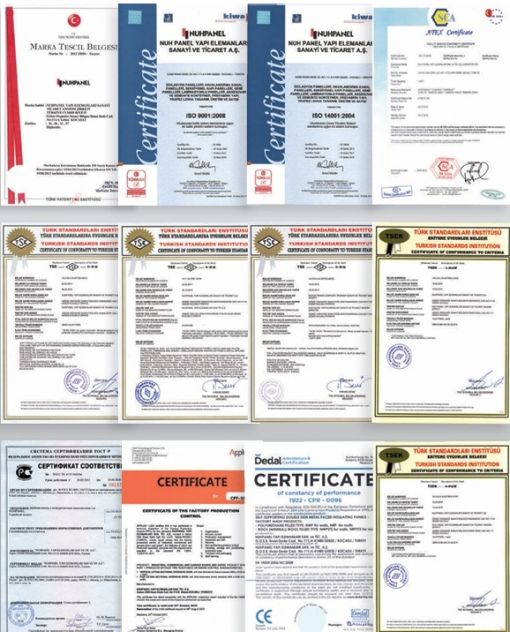

 > CERTIFICATES <





SMART ROOF. SAFE BUILDING.

Създаден за 15-секунден тест. Доказал своята устойчивост при 5-минутно изпитване.
PIR сандвич панели — надеждна изолация за сигурни сгради.

Изпитване за огнеустойчивост

FIRE RESISTANCE TEST

Designed for a 15-second test. Proven its resistance during a 5-minute exposure.
PIR Sandwich Panels — Reliable insulation for safer buildings.

FIRE CLASS and EQUIVALENTS

Classes of reaction to fire performance for construction products excloding floorings and linear pipe thermal insulation product

Fire Class

Definition

A1	A1 class materials, do not contribute to combustion at any stage of the fire including the fully developed fire. Therefore, it is automatically considered to provide all the properties determined enough to lower grades of these materials.
A2	TS EN 13823 provides the criteria set according to Class B. In addition, these materials under fully developed fire must be contributing significantly to the fire load and fire growth
B	In addition to the criteria set for the C-Class it provides more stringent requirements.
C	In addition to the defined criteria for class D it provides more stringent requirements. In addition, a single burning item in the lateral spread of flame made against thermal attack should remain a limited extent.
D	Provide the criteria for Class E and significantly resistant materials for a long time against a small flame attack without flame propagation. Additionally, it has been sufficiently limited and must be resistant to temperature reveal thermal attack carried out by a single burning object conditions.
E	Significantly materials that resist a short time in front of a small flame attack without flame propagation.
F	Determination of fire performance and has A1, A2, B, C, D, E class classification as one of the materials

Additional classifications for smoke formation

S3	Without any restriction in terms of smoke production
S2	Besides total smoke production growth rate of smoke production, which has been limited
S1	Providing more severe criteria than s2

Burning drops / Additions to grain Classifications

D2	No restrictions
D1	Longer than a specified period of flaming droplets / particles should not have
D0	Burning droplets / particles should not occur

Except for flooring Building Materials Flamability Equivalence Classes

The material Flamability Feature	According to TS EN 13501-1	TS 1263
Fireproof	A1	A1
Difficult Combustive	A2 - s1, d0	A2

Difficult Flaming	B, C - s1, d0	B1
	A2 - s2, d0            A2, B, C - s3, d0
	A2, B,C - s1, d1            A2, B,C - s1, d2
Miinimum	A2, B, C – s3, d2
Normal Flaming	D - s1, d0                 D - s2, d0                 D - s3, d0                       E	B2
	D - s1, d2                 D - s2, d2                 D - s3, d2
Miinimum	E - d2
Easy Flaming	F	B3



САНДВИЧ ПАНЕЛИ ЗА СИГУРНИ И ЕНЕРГИЙНО ЕФЕКТИВНИ СГРАДИ
PIR • PUR • КАМЕННА ВАТА



ПОКРИВНИ ПАНЕЛИ, СЪВМЕСТИМИ С ФОТОВОЛТАИЦИ — БЕЗ ПРОБИВАНЕ НА ПОКРИВА



WHY MACSTONE PANEL?

MACSTONE PANEL

SMART ROOFS. SAFE BUILDINGS.

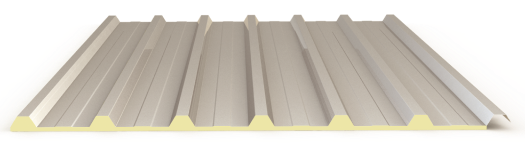

Sandwich panels for roofs and walls

PIR • PUR • MW (Mineral Wool)

☀️ SOLAR PV READY

Install photovoltaic systems without drilling the roof panel.

FAST • SAFE • EASY

Сандвич панели за покриви и стени

PIR, PUR и панели от каменна вата за индустриални сгради, складове, фабрики и търговски обекти. Покривни панели, съвместими с фотоволтаични системи, с решения за монтаж без пробиване на покривния панел.

Roof and wall sandwich panels

PIR, PUR, and rock wool panels for industrial buildings, warehouses, factories, and commercial facilities. Roof panels compatible with photovoltaic systems, featuring mounting solutions that do not require drilling into the roof panel.

🔥 PIR / PUR / Mineral Wool
☀️ Solar PV Compatible
🔩 No Roof Drilling
🏭 Industrial & Commercial Buildings

--------------------------------------------------------------------------------------------

РАЗГЛЕДАЙ ПРОДУКТИТЕ

[EXPLORE PRODUCTS]

--------------------------------------------------------------------------------

ПОИСКАЙ ОФЕРТА

[REQUEST A QUOTE]

GET A PROPOSAL FOR THE PROJECT

--------------------------------------------------------------------------------------------

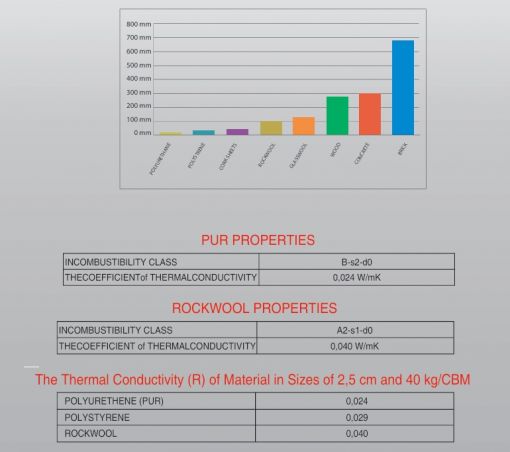

ADVANTAGES

Polyurethane panels produced by NP.
- Adopting to expansion on metal surface due to heat effect,
- Provides better adhesion between metal surface and foam,
- Low dust emission and has a flexible structure

--------------------------------------------------------------------------------------------

MACSTONE PANEL

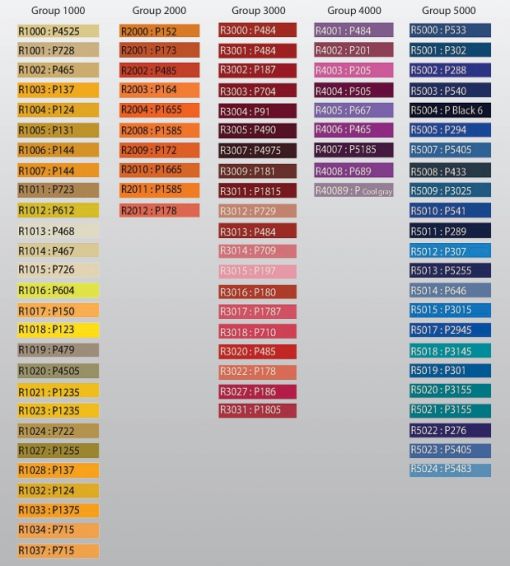

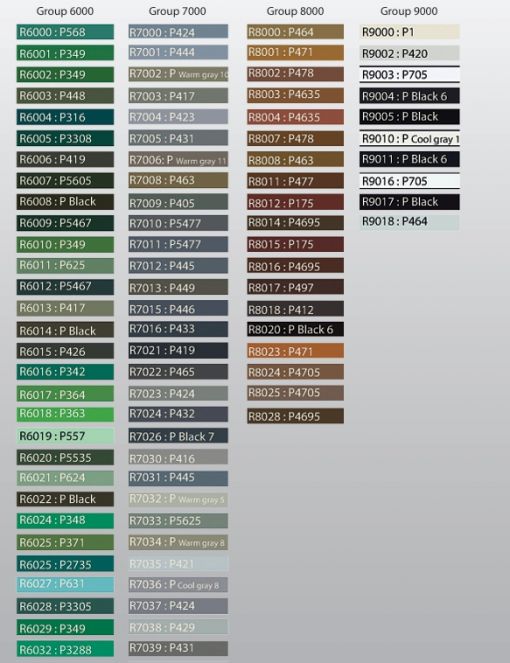

RAL CODES

PAINTED STEEL SHEET AND PROPERTIES

Considering the role of the type of content of polymer binder in the dye, painted plates can be classified as follows ;

Polyester (SP) Based Steel Sheet: The most important characteristics of the polyester paints are, wide range of color and brightness choice and economy. According to this, they can be widely used. Besides, elasticity, resistance to abrasion, resistance to corrosion, resistance to humidity and impact resistance are high.

Foreign strength, the low chalking resistance and gloss retention can be listed as weaknesses. Polyester coating thickness can vary between 60μm with 20-25μm depending on usage area and expected performance. Widespread use of polyester coated sheet steel; roof-facade closures, sandwich panels, garage doors, ceiling lfoor, clamp construction, white appliances and water drainage systems.

PVDF Based Painted Steel Sheet: The most important characteristics of the PVDF paints are, color and brightness resistance, chalking resistance and resistance to many chemicals are high. Also, elasticity, impact resistance and resistance to abrasion are good.

The low scratch resistance, color and brightness of the lack of options, specified as diverse as polyester paint can be counted as weaknesses. PVDF paints thickness can be vary between 25 μm-28 μm.
Widespread use of PVDF coated sheet steel because they have the best color and brightness stability, they can be used roof and facade closures, sandwich panels where the efficient of sun high. Also, they are suitable for composite production, and advertisement panels.

Polyurethane Based Painted Steel Sheet (PUR-PA): This type of paint with polyamide reinforced has a very high scratch and abrasion resistance. Polyurethane-based paints are applied as smooth or textured (PURPA Texture). Corrosion resistance, color and gloss retention and forms shapeability is also good. Although polyurethane paint thickness can be vary between 20 μm-25 μm, greater thickness options can be obtained. Widespread use of polyurethane coated sheet steel; Because of the high scratch resistance, they are preferred in applications where scratch resistance is important as production such as garage doors and blinds (roller shutter) .

Plastisol Based Painted Steel Sheet (PVC(P)): According to other types of paint they have much higher application thickness. 100-200 µm dry film thicknesses are widely used. The most important characteristics are resistance to corrosion and humidity and also suitability of embossing application. Paint types are suitable as a bend and shape. The color and brightness strengths can be specified as the weaknesses. Therefore, in regions where solar radiation is not very effective (i.e. Northern Europe) it is widely used. Widespread use of plastisol base sheet steel; The applications where UV resistance is not very important and roof-facade closures requiring high corrosion resistance of the coatings.

For Polyester, PVDF and Polyurethane based painted steel sheet, standart applications are 25±3μ for non
metallic colours and 23±3μ for metallic colours. Different thickness applications are also possible. 100-200 μm dry film thicknesses (with tolerance) are used.

Source: MMK Metallurgy

---------------------------------------------------------------------------------------------------------------------------------------

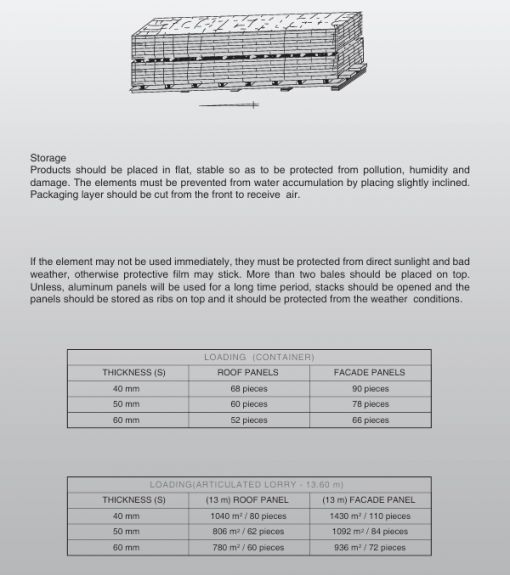

LOADING, PACKING AND STORAGE

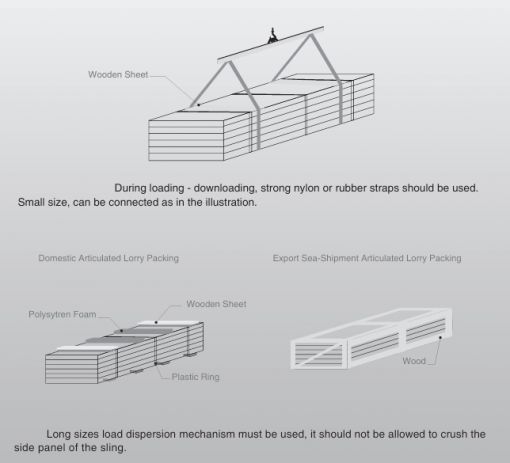

Small size, can be connected as in the illustration.

Long sizes load dispersion mechanism must be used, it should not be allowed to crush the side panel of the sling.

Storage !!!
Products should be placed in flat, stable so as to be protected from pollution, humidity and
damage. The elements must be prevented from water accumulation by placing slightly inclined.

Packaging layer should be cut from the front torecive air.

If the element may not be used immediately, they must be protected from direct sunlight and bad
weather, otherwise protective film may stick. More than two bales should be placed on top.
Unless, aluminum panels will be used for a long time period, stacks should be opened and the panels should be stored as ribs on top and it should be protected from the weather conditons.

LOADING (CONTAINER)

THICKNESS (S)          ROOF PANELS        FACADE PANELS
        40 mm                      68 pieces                  90 pieces
        50 mm                      60 pieces                  78 pieces
        60 mm                      52 pieces                   66 pieces

LOADING(ARTICULATED LORRY - 13.60 m)

THICKNESS (S)        (13 m) ROOF PANEL      (13 m) FACADE PANEL
       40 mm                    1040 m / 80 pieces          1430 m / 110 pieces
       50 mm                    806 m2 / 62 pieces          1092 m2 / 84 pieces
       60 mm                    780 m2 / 60 pieces            936 m2 / 72 pieces

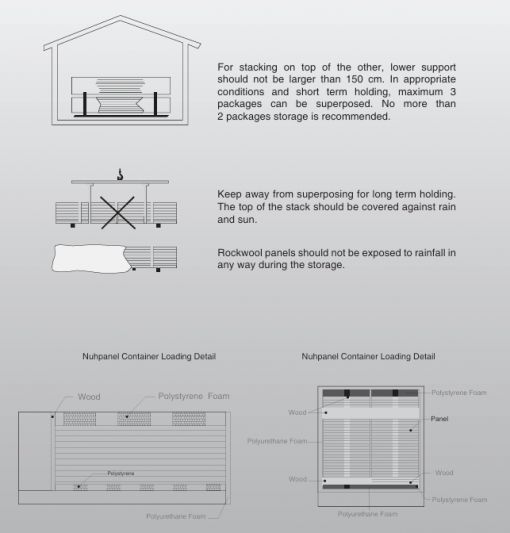

For stacking on top of the other, lower support should not be larger than 150 cm. In appropriate conditions and short term holding, maximum 3 packages can be superposed.

No more than 2 packages storages is recommended.



Keep away from superposing for long term holding.
The top of the stack should be covered against rain and sun.

Rockwool panels should not be exposed to rainfall in any way during the storage.

CONTAINER LOADING DETAILS

---------------------------------------------------------------------------------------------------------------------------------

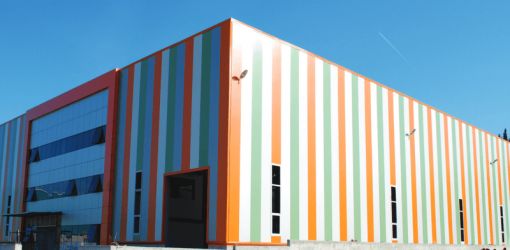

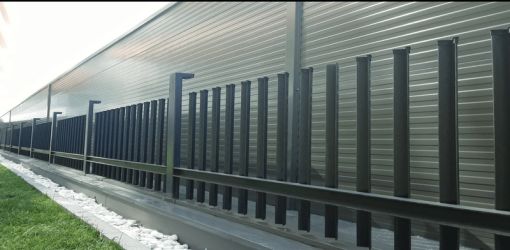

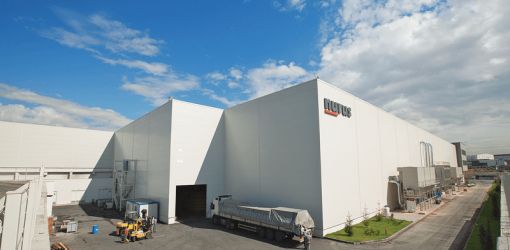

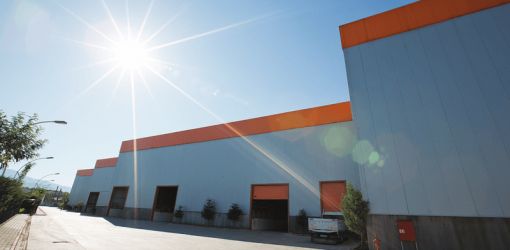

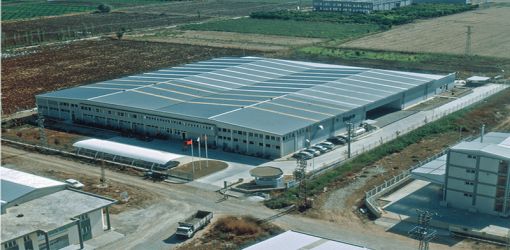

ПРОЕКТИ

ПРИЛОЖЕНИЯ

Фабрика / склад / хангар / хладилно помещение / търговска сграда

APPLICATIONS

Factory / warehouse / hangar / cold room / commercial building

SMART ROOF. SAFE BUILDING.

УМЕН ПОКРИВ. СИГУРНА СГРАДА.

31
Years of Experience
We aim to build a better-functioning world together with our partners.

18,500+
Happy Customers
The key to successful customer relationships is treating every customer as if they were your only one.

7 Million m² +
Installed Capacity
We take pride in being pioneers within a constantly evolving market.

23K+
Successful Projects
Our goal: to dedicate ourselves to building a better-functioning world.

31
години опит
Стремим се да изградим по-добре функциониращ свят заедно с нашите партньори.

Над 18 500 +
доволни клиенти
Ключът към успешните отношения с клиентите е да се отнасяте към всеки от тях така, сякаш е единственият ви клиент.

Над 7 милиона м² +
инсталиран капацитет
Гордеем се, че сме пионери на един непрекъснато развиващ се пазар.

Над 23 000 +
успешни проекта
Нашата цел: да се посветим на изграждането на по-добре функциониращ свят.
